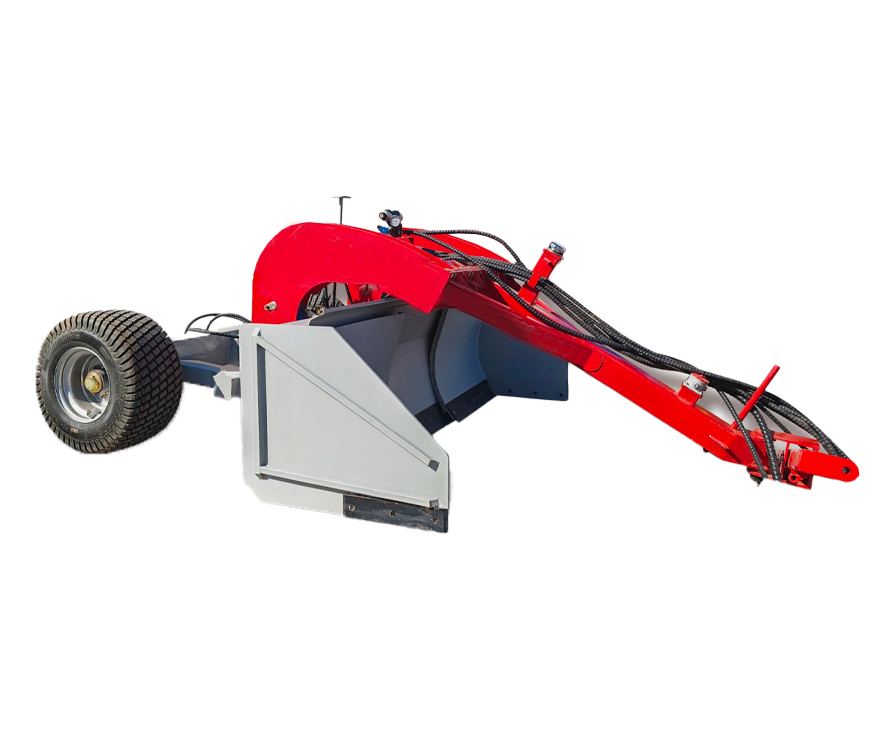

A laser land leveler is a precision tool that uses a laser beam to level uneven fields. The laser beam is emitted from the transmitter and sweeps across the field, creating a virtual plane of light.The receiver mounted on the leveling bucket detects the laser reference plane’s position and sends signals to the control box.The control panel then interprets the signals and opens or closes the hydraulic control valve, which raises or lowers the bucket to achieve a desired grade.This advanced technology enables the machine to smooth out the surface of the field to its average height with a desired degree of slope, resulting in better agronomic practices, higher crop yields, efficient crop management, and water conservation.
| Model | 12PW-4.0 | 12PW-3.0A | 12PW-2.8/3.5 | 12PW-2.5/3.2 | 12PW-2.5 | 12PW-1.5/2.2 |
| Working Width | 4 | 3 | 3.5 | 3.2 | 2.5 | 2.2 |
| Control Mode | SATELLITE CONTROL | |||||
| Levelling Shovel Type | Camber Beam Adiustable | Camber Beam Fixed | Straight Shovel | |||
| Type Size | 10.0/75-15.3 | 31/15.5-15 | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 | 23*8.50/12 |
| Matched Power | 154.4-180.5 | 102.9-154.4 | 102.9-154.4 | 102.9-154.4 | 80.4-102.9 | 50.4-80.9 |
| Working Rate | 0.33 | 0.4 | 0.33 | 0.267 | 0.23 | |
| Size | 4800*2650*1700 | 4300*3120*1650 | 4000*2930*1350 | 4000*2614*1350 | 4000*2610*1350 | 2650*1600*1320 |
| Weight | 2600 | 1980 | 1480 | 1440 | 1150 | 1150 |
