Agricultural Plough/Plow for Tractor Farm Tillage Equipment 2-6 Discs Available Plow
Main Feature
Lingyuan, and the plough blades are of good quality.
3)The plough legs are specially heat-treated to make them more durable
Download Message
Product Details
| Type | 1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 | 1LYX-630 |
| Working width (mm) | 600 | 900 | 1200 | 1500 | 1800 |
| Working depth (mm) | 250-300 | ||||
| No. of disc (pc) | 2 | 3 | 4 | 5 | 6 |
| Dia of disc (mm) | 660/710 | ||||
| Weight (kg) | 320 | 400 | 490 | 650 | 750 |
| Linkage | Three point mounted | ||||
| Matched power (hp) | 40-50 | 60-80 | 80-100 | 100-120 | 120-160 |

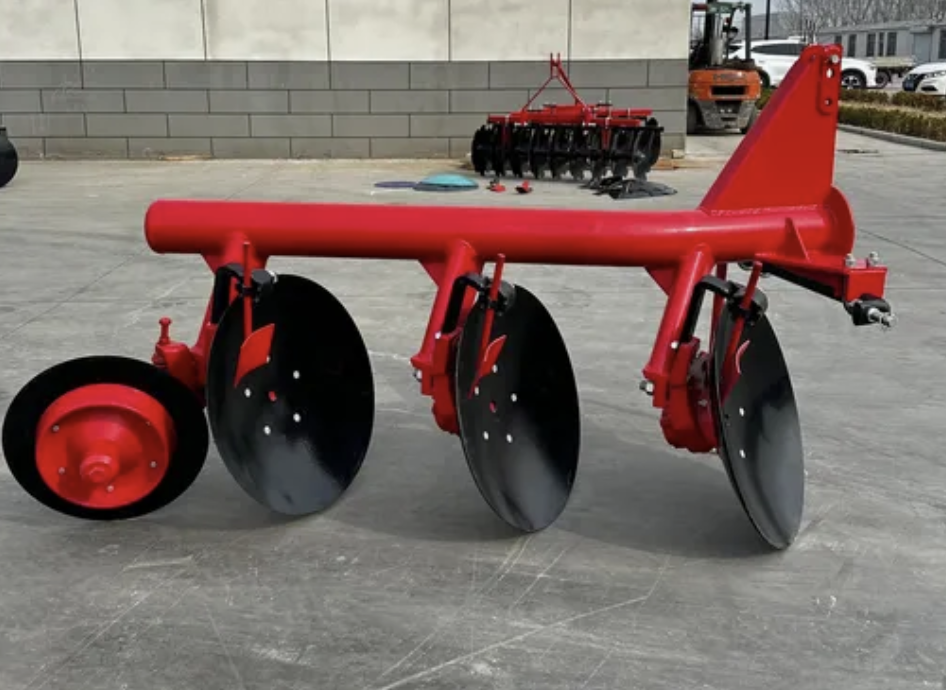

The 1LY disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil.Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and break brickbat, etc.In the field, it is good at cutting grasses and straw, free from stopped by the
grasses,soil or stones. etc. It is efficient in the work.It is of good quality during operation. It is easy to adjust and strong and durable.Thanks to the use of 8 mm rectangular tubes, and more than 20 years of experience in the production of agricultural tools, our disc plough main frame is rugged and durable. Thanks to the discs produced by the factory itself, the discs are hard,wear-resistant and not easily damaged by the use of Anshan and Lingyuan steel, the best steel in China. Thanks to our factory status, we can provide all the accessories, which are all produced by ourselves.
