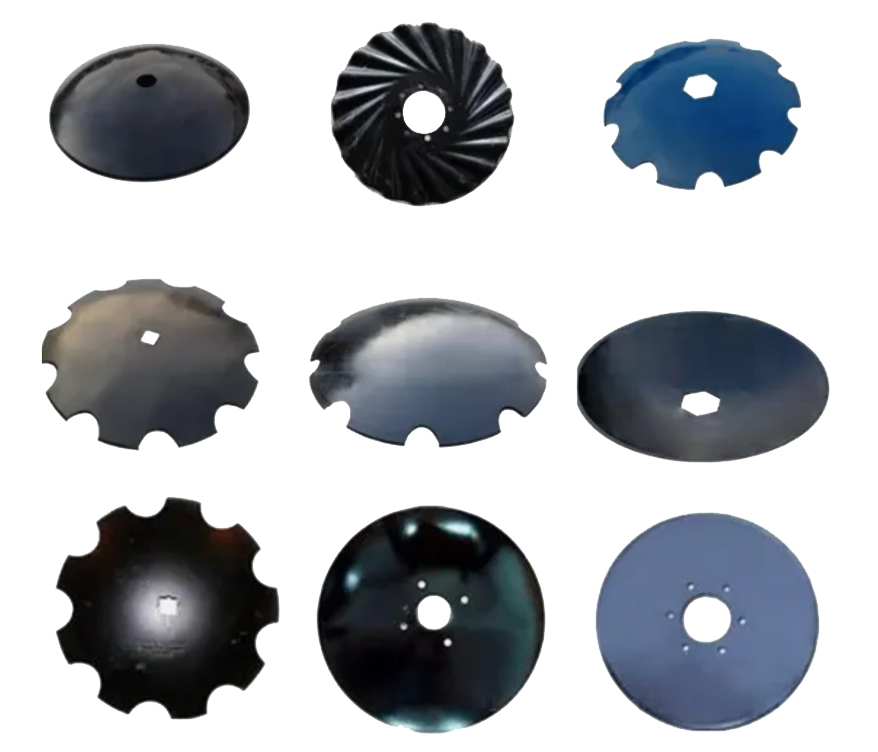

Agriculture Machinery Disc Harrow Blade Parts Disc Plough/Plow Blade
Premium Quality Disc Blade. Heavy-Duty Disc Blade for Enhanced Soil Tillage Performance. High-Quality Plow BladePremium Quality Disc Blade. Heavy-Duty Disc Blade for Enhanced Soil Tillage Performance. High-Quality Plow Blade
Download Message
Product Details
| Material: | 65Mn,Boron steel |
| Hardness: | HRC38-45, HRC43-48 |
| Thickness: | 3.0-12.5mm |
| Size/dimension: | 12″-44″(300mm-1120mm) |
| Edge of Disc Blade: | Round or Notched. |
| Shape: | Flat,Concave or Wavy |
| Surface treatment: | Painting |
| Colors: | Blue or black ( matt or bright), Made to your order |
| Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
| Hole Size: | 27x27mm, 42x42mm, optional |
| Working Depth: | 200mm, 300mm |
| Working Width: | 3.4M ~ 6.2M |
| Packing: | Non-fumigation wooden case, metal case according policy of different regions |
| Feature /Characteristic: | Highest wear life due to special edge making process |
| Common Specifications of Disc | |||
| Dia. | Concavity | Thickness | |
| mm | inch | mm | mm |
| 255 | 10 | 12 | 3 |
| 305 | 12 | 19 | 3 |
| 330 | 13 | 25 | 3 |
| 355 | 14 | 38 | 3 |
| 410 | 15 | 38~50 | 3 |
| 430 | 17 | 57 | 3,4 |
| 460 | 18 | 38~60 | 3,4 |
| 480 | 19 | 57 | 3,4 |
| 510 | 20 | 44~63 | 3,4,5 |
| 535 | 21 | 63 | 3,4,5 |
| 560 | 22 | 60~85 | 4,5,6 |
| 585 | 23 | 75~90 | 4,5.6 |
| 610 | 24 | 75~95 | 4,5,6 |
| 660 | 26 | 86~115 | 5,6,7,8 |
| 710 | 28 | 100~130 | 5,6,7,8 |
| 760 | 30 | 120~135 | 6,7,8,10,12 |
| 810 | 32 | 120~140 | 8,10,12 |
| 910 | 36 | 120-200 | 8,10,12 |
| 960 | 38 | 120-200 | 8,10,12 |
