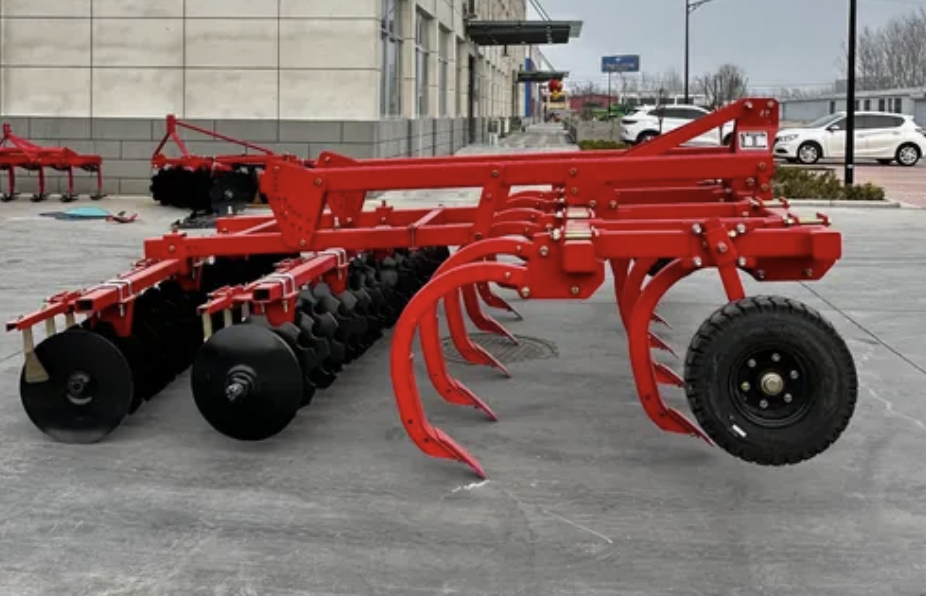

Subsoiler Disc Plough Disc Harrow Soil Preparation Machine
Deep tillage combined with land preparation machine series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and after plough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Download Message
Product Details
| Product model: | 4 plow + 4 rotary tiller 427 |
| Total weight: | 1670kg |
| Machine size: | 3.9m*3.87m*1.47m |
| Tillage width: | 3450mm |
| Number of deep tillage shovels: | 11 |
| Spacing of deep tillage shovels: | 640mm |
| Number of rake blades: | 32 notched disc knives 4 disc knives |
| Diameter of rake blades: | 460mm |
| Thickness of rake blades: | 4mm |
| Spacing of rake blades: | 195mm |
| Deep tillage: | 35-45cm |
| Main beam: | 100mm*100mm*8mm |
| Supporting power: | Four-wheel tractor with more than 200 horsepower |
| Working mode: | Three-point suspension |
