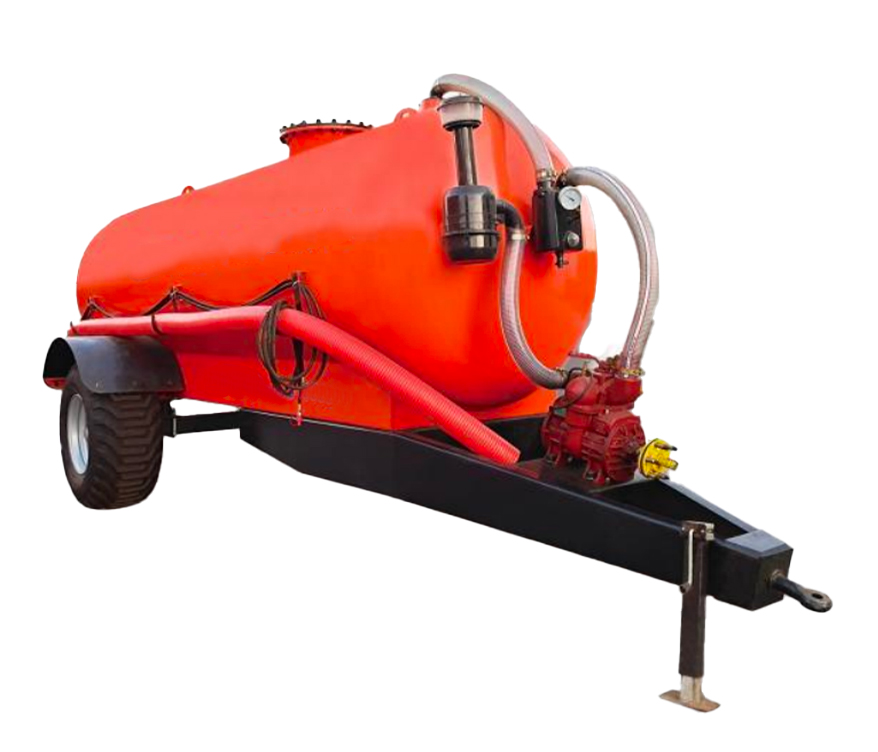

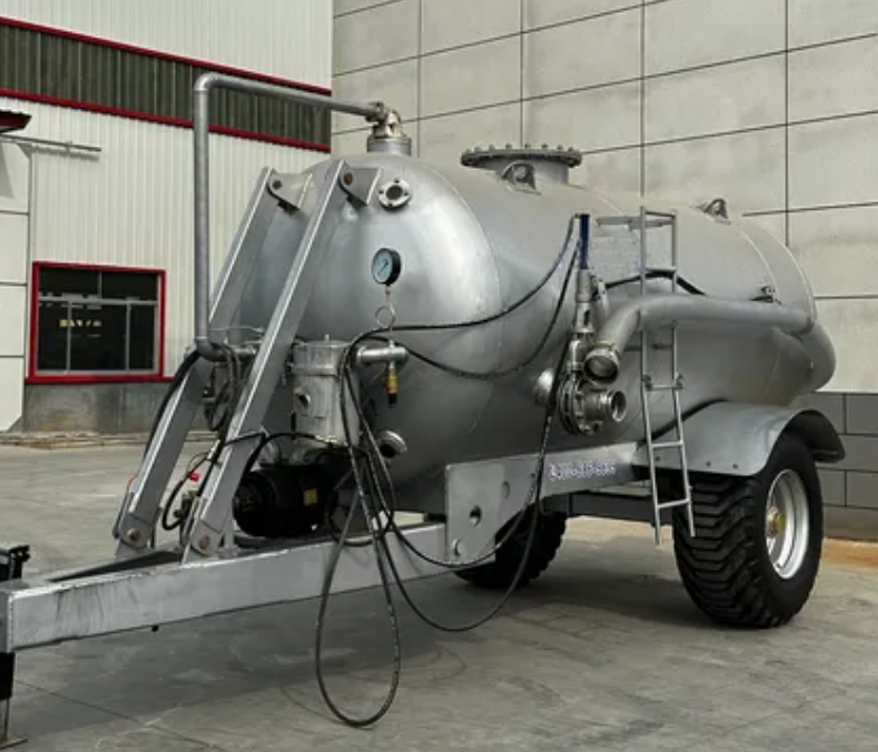

Trailed liquid fertilizer spreader
The liquid fertilizer spreader uses the rear output shaft of the tractor as power to drive the vacuum pump to work and control the suction and spraying of fertilizers. It is suitable for liquid organic fertilizers, poultry and livestock urine, liquid manure, biogas sewage and other liquid media. It can transport evenly, reduce fertilizer evaporation and retain fertility.
Download Message
Product Details
| ltem | Unit | YTF-8 | YTF-10 |
| Hopper volume | Cubic meter | 6 | 10 |
| Matching horsepower | kw | ≥70 | ≥100 |
| Machine size (Lx wx H) | mm | 6100*2000*2700 | 7340*2540*2700 |
| Rate of fertiization | r/min | ≥1Cubic meter/min | ≥1Cubic meter/min |
| Spraying range | m | 10-15 | 10-15 |
| Machine weight | kg | 2100 | 3210 |
| Machine wheel spacing | mm | 1600 | 1940 |
| Tire type | / | 400/55-22.5 | 500/60-22.5 |
