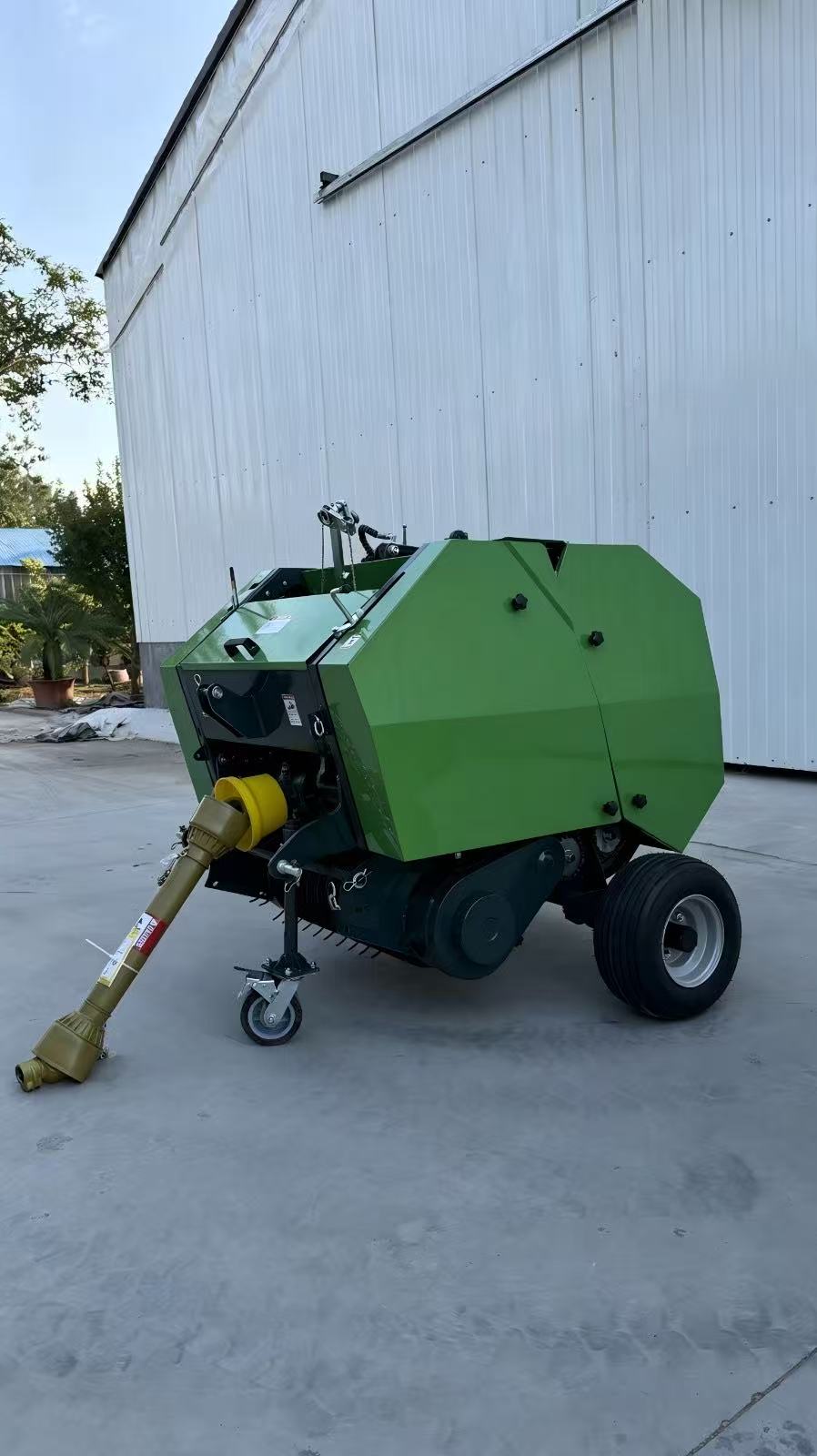

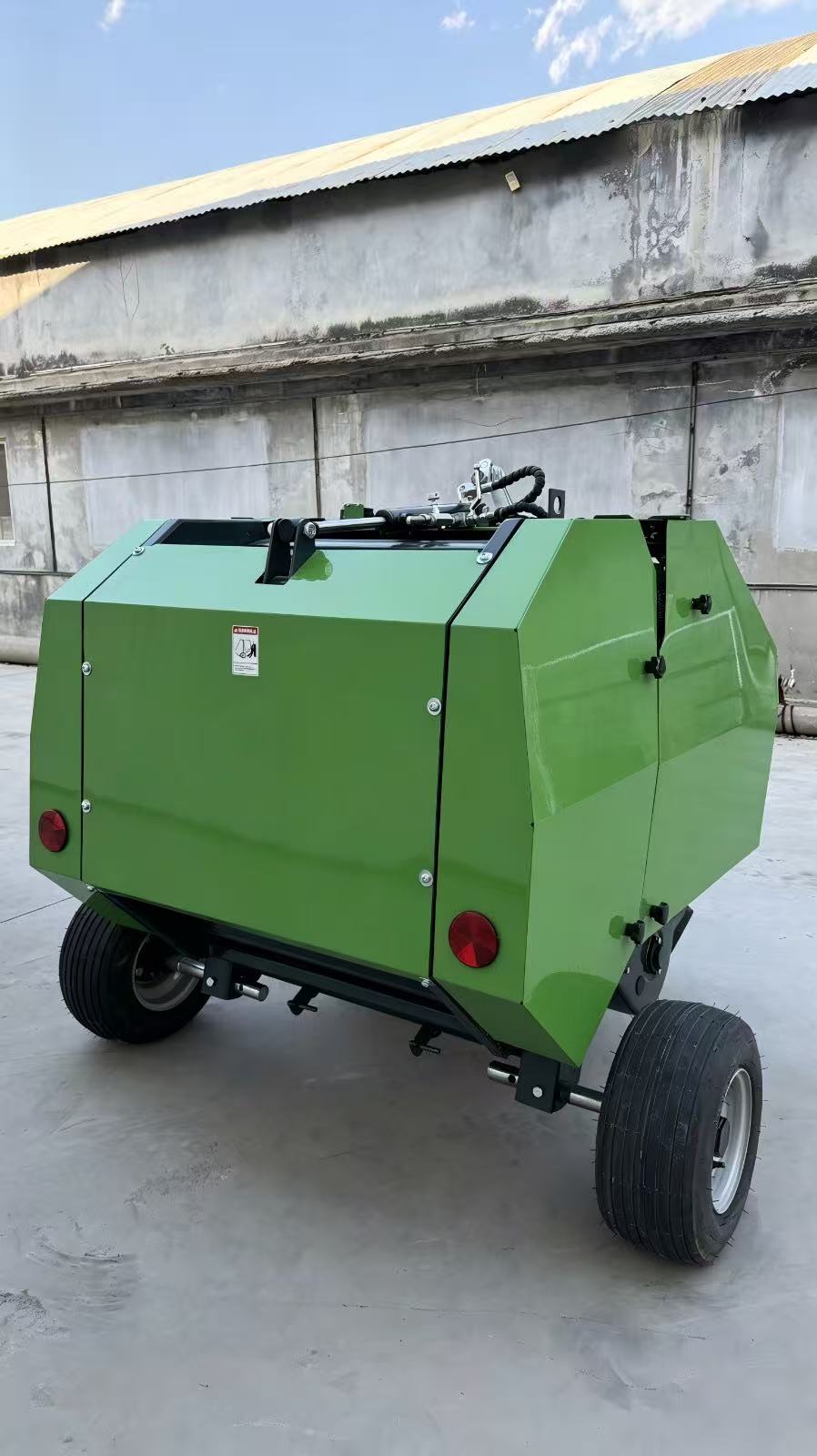

Mini Round Hay Baler
Main Features of hay baler machine
1) Strong structure,Simple design ,easy in installation and maintainance.
1) Strong structure,Simple design ,easy in installation and maintainance.
2) Mini round hay baler suitable for compact tractors,only need PTO
3) Natural twine,harmless to animals
4) bale density adjustable,easy to move bales by hands
5) auto release system by rope or button
How It Works: The machine is towed by the tractor and powered via the PTO shaft. As the tractor moves, the pickup teeth collect the straw/hay into the chamber. Once the chamber is full and the bale reaches the set density, the alarm sounds. The twine binding mechanism activates automatically. Finally, the hydraulic system ejects the finished bale, ready for the next cycle.
Download Message
Product Details
|
Model
|
DRS-850
|
DRS-870
|
|
Bale size dia.×width |
φ50×70cm
|
φ61×70cm
|
|
Overall L×W×H
|
115×130×120cm
|
130×130×135cm
|
|
Weight
|
402kg
|
442kg
|
|
Pickup width
|
80cm
|
80cm
|
|
Efficiency
|
2-5km/h
|
2-5km/h
|
|
Capacity bales per hour
|
80-120
|
80-100
|
|
Tyre
|
16×6.5-8-4PR
|
16×6.5-8-4PR
|
|
Matching power
|
18-50HP
|
30-60HP
|
|
PTO speed
|
540 rpm
|
540 rpm
|
|
Container loading
|
DRS-850
|
20 sets/20GP
40 sets/40GP/40HQ |
|
DRS-870
|
16 sets/20GP
36 sets/40GP/40HQ |
